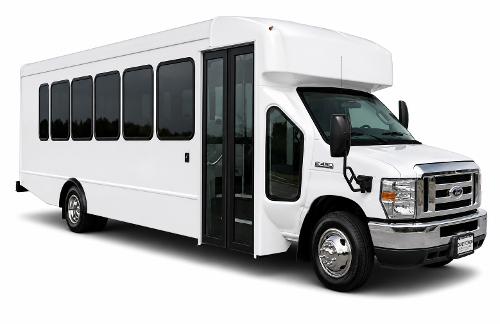

Terra Transit
The Terra Transit shuttle bus is an economical compliment to Turtle Top’s mid-size fleet. Your riders will find it easy to enter and exit with ample headroom and aisle passage. With a variety of floor plans, you can meet your needs for storage, seating preferences, and wheelchair accessibility. A full roll cage and quality construction maked this the most affordable and practical choice for safe, dependable transportation.
Overview:
- Up to 25 Passengers
- Ford E-350, E-450/GM 3500, 4500 Chassis
- 3-Year/36k mile Warranty
Features
-
Strongest floor in the industry starts with G-channel cross members that stretch from wall to wall
-
Full perimeter frame completes floor to stand up to years of performance
-
Center aisle stiffeners consisting of reverse cap steel C-channel prevent aisle sagging after years of operation
-
Seat tracks mounted on reverse cap steel C-channels have been tested and certified to exceed DOT Standards
-
Steel corner window gussets add perimter sidewall strength
-
Fully welded steel roll cage with rust inhibitor
-
Sidewalls and ceiling insulated by closed-cell stiff foam board
-
Flat Floor Standard
-
High Gloss 1-Piece Composite Exterior Side Panels with UV Protection
-
GXL Wiring for all Interior and Exterior Components
-
Interior / Exterior LED Lighting
Specifications
| TERRA TRANSIT | FORD | GM |
| Wheel Base | 158" - 206" | 23'-29' |
| Floor Length | 175" - 241" | 175" - 241" |
| Overall Length | 23' - 28.5' | 23' - 29' |
| GVWR | 12,500-14,500 | 12,300-14,200 |
| Exterior Height | 117" | 117" |
| Exterior Width | 98" | 101" |
| Interior Height | 78" | 78" |
| Interior Width | 94" | 93" |

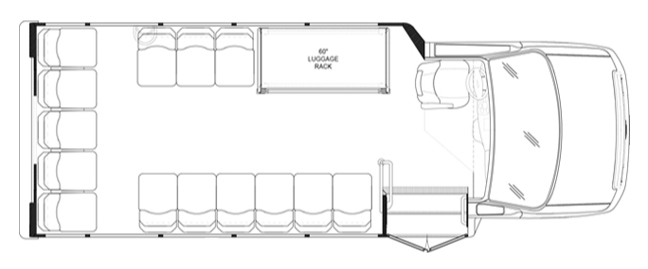

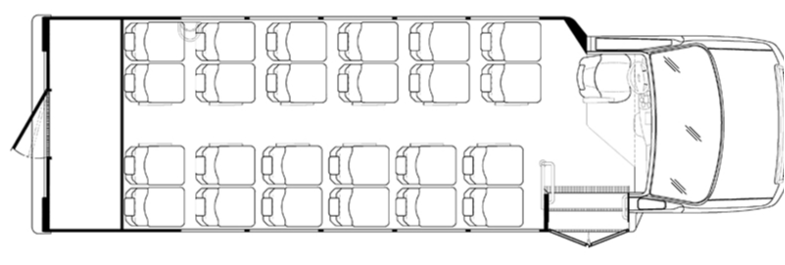

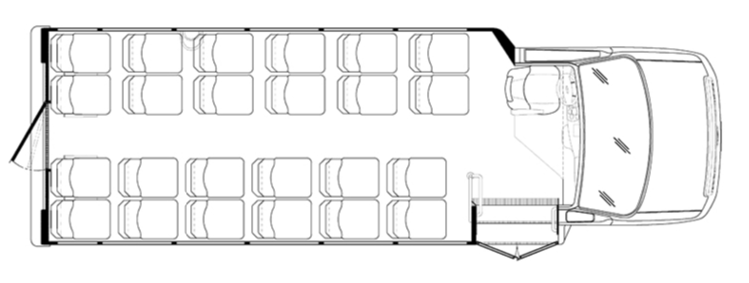

Floor Plans

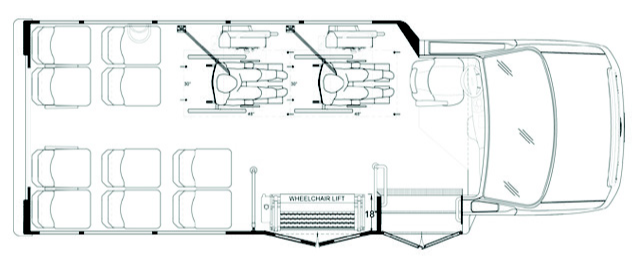

9 passengers + 4 wheelchairs
13 passengers + 2 wheelchairs
17 passengers + 2 wheelchairs
ADA Floor Plans

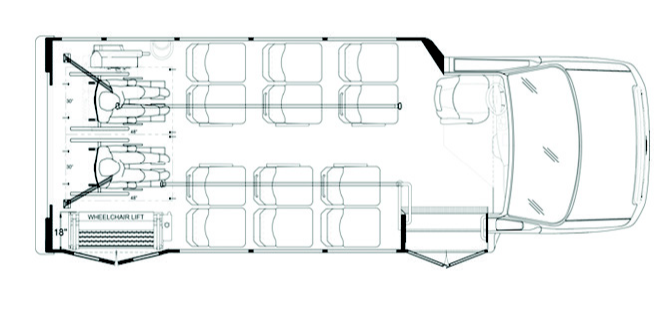

9 passengers + 4 wheelchairs

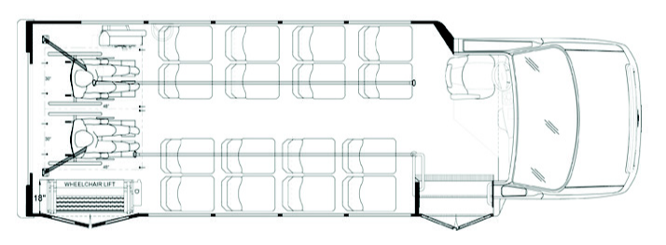

13 passengers + 2 wheelchairs
17 passengers + 2 wheelchairs

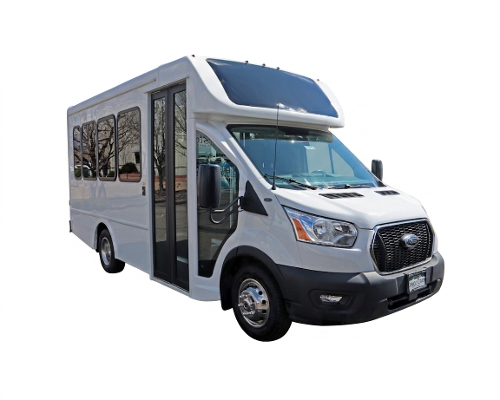

Light Duty
The Terra Transit Light Duty shuttle bus is an economical compliment to Turtle Top’s mid-size fleet. This abridged version of the Van Terra offers seating for up to 17 passengers. Riders will find it easy to access with a low ground to first step with ample headroom and aisle passage. Operators love the 2:1 fuel economy vs. a traditional E-Series.
Overview:
- Up to 17 Passengers
- Available with Ford OEM AWD
- 5-Year/100k mile Warranty
Features
-
Scenic Nosecap Touring Window
-
Single Piece Exterior Sidewall
-
Tubular Steel Cage Construction
-
Steel Corner Window Gussets
-
Flat Floor – No Wheelwell Protrusions
-
Auto High Beam Headlights
-
Heavy Duty Front Axle
Specifications
| Wheel Base | 138" - 156" |
| GVWR | 10,360 lbs. |
| Engine | 3.5L EcoBoost V6 Engine |
| Interior Width | 82" |
| Fuel Tank | 25 Gallons |

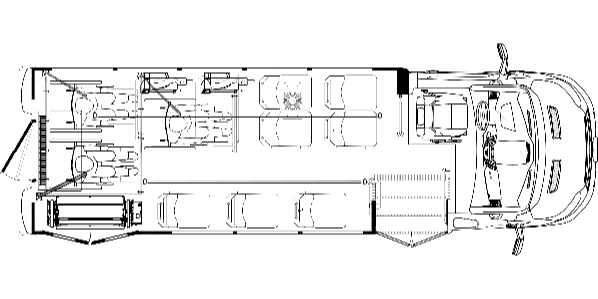

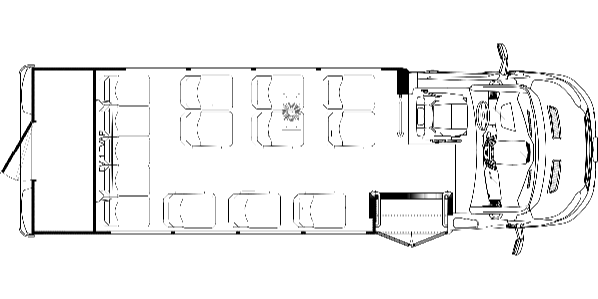

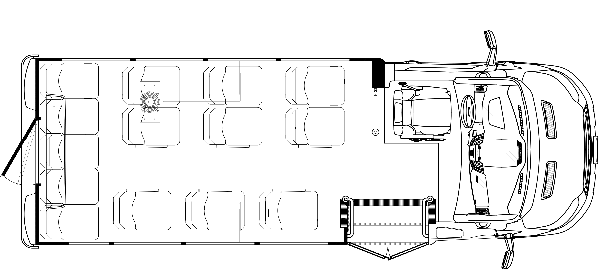

All Floor Plans
9 passengers + 4 wheelchairs
13 passengers + 2 wheelchairs
17 passengers + 2 wheelchairs

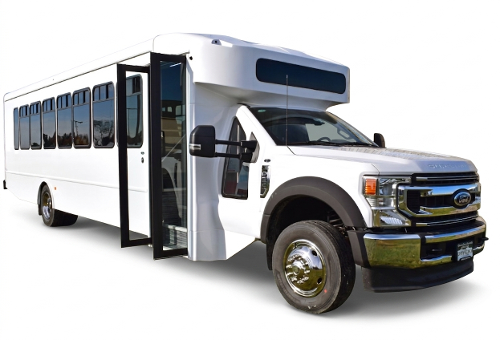

Heavy Duty
Overview:
- Up to 38 Passengers
- Ford F-550/600 Chassis
- 5-Year/100k mile Powertrain Warranty
Features
-
Strongest floor in the industry starts with G-channel cross members that stretch from wall to wall
-
Full perimeter frame completes floor to stand up to years of performance
-
Center aisle stiffeners consisting of reverse cap steel C-channel prevent aisle sagging after years of operation
-
Seat tracks mounted on reverse cap steel C-channels have been tested and certified to exceed DOT Standards
-
Steel corner window gussets add perimter sidewall strength
-
Fully welded steel roll cage with rust inhibitor
-
Sidewalls and ceiling insulated by closed-cell stiff foam board
-
Flat Floor Standard
-
High Gloss 1-Piece Composite Exterior Side Panels with UV Protection
-
GXL Wiring for all Interior and Exterior Components
-
Interior / Exterior LED Lighting
Specifications
| Wheel Base | 205" - 266" |
| GVWR | 19,500 - 22,000 |
| Exterior Height | 119" |
| Exterior Width | 96" |
| Interior Height | 76" |
| Interior Width | 94" |
| Door Width | 29" - 35" |
| Ground to 1st Step | 10" |
| Overall Length | 28' - 36.5' |
| Step Rise Height | 9.25" |
| Step Run Depth | 8.5" |

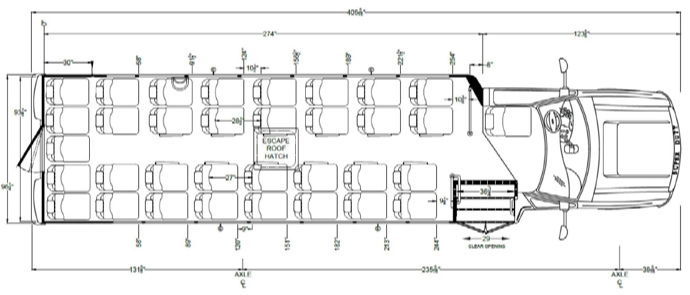

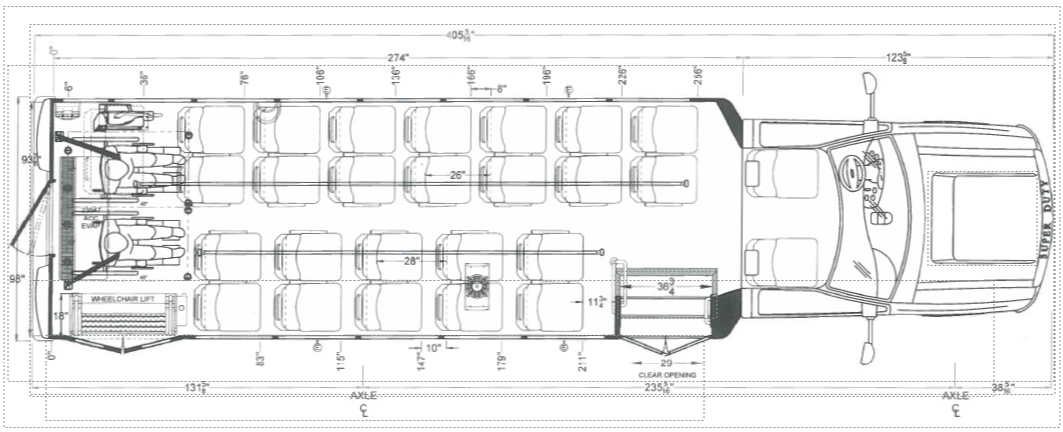

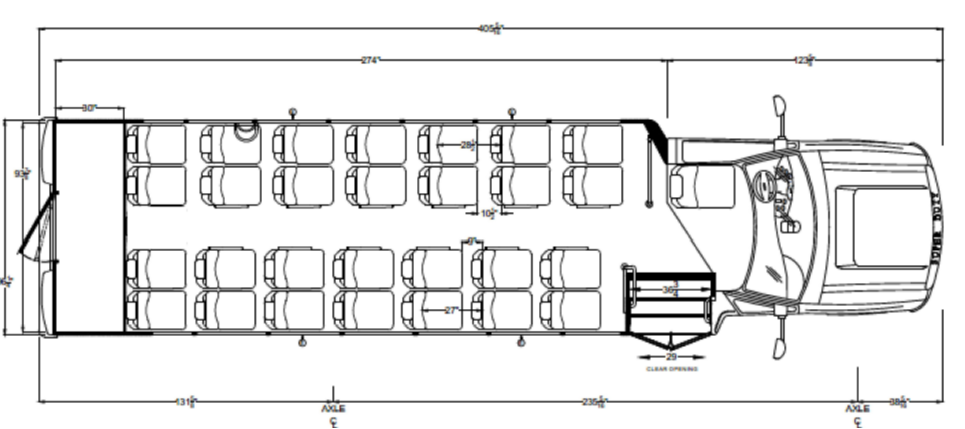

All Floor Plans
9 passengers + 4 wheelchairs
13 passengers + 2 wheelchairs
17 passengers + 2 wheelchairs
