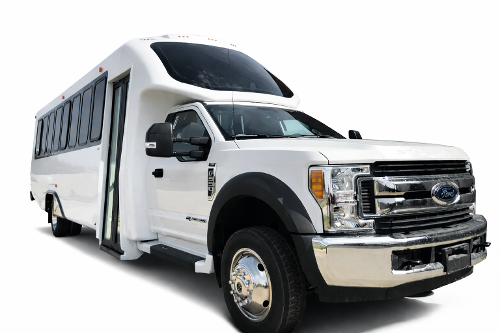

Diamond 3500
Davey Coach now offers one of the largest true composite buses in North America. This unique co-pilot design reflects the innovation needed to deliver larger charter-style layouts on a medium-duty chassis.
What sets a Diamond F-Series build apart is its commitment to higher standards across the board—featuring a weight-optimized design, lower entry step height, increased interior headroom, and an enhanced passenger environment. With a lowered floor frame and expanded aisle space, every detail is engineered to maximize comfort at each seating position.
Overview:
- Up to 36 Passengers
- Ford F-450 / F-550 Chassis
- 5-Year body warranty
Features
- Freedman Seating
- Corporate/Salon Seating
- Altro/ Gerflor Flooring
- Step Nosing - Entry Steps
- USR Belts
- 3 PT Seats - Certified/Tested
- Quick Release Seat - Tested
- Grey or Black Cloth Walls
- Leathermate Walls
- Interior LED Lighting
- Egress Windows/Hatch
- 19”/ 26” TV Screens
- Rear Luggage Wall
- Audio Systems
- Front Viewing Window
- Modesty Panels
- Para Transit Packages
- Braun Lift
- SurLok W/C Restraints
- Luggage Racks
Specifications
| Max Passenger Capacity | 36 |
| Exterior Width | 96" |
| Exterior Height | 123" |
| Wheelbase | 270" |
| Exterior Length | 35'6" |
Power Train
- Ford: 7.3L Gas v8 F-450, F550
- Ford: 6.7L Diesel v8 F-450, F550
Exterior Contruction
- All Composite Body
- Fully Insulated Design
- 1 1/2” Tubing - Floor Frame
- 3/4” COOSA Composite Flooring
- Nida Core Plastic Honeycomb
- Only 3 seams in Exterior Body
- Powder Coated Bumper (Rear)
- Fully Undercoated
- Electric Bi-Fold Door (A&M)
- Full Body Wrap & Paint
- ID signage
- Co-Pilot Door Models Only
- Exterior LED Lighting
- Mor - Ryde Suspension
- Air - Ride Suspension
- Front Viewing Window
- Round LED Taillights
- Fiberglass Running Boards
Popular Floor Plans

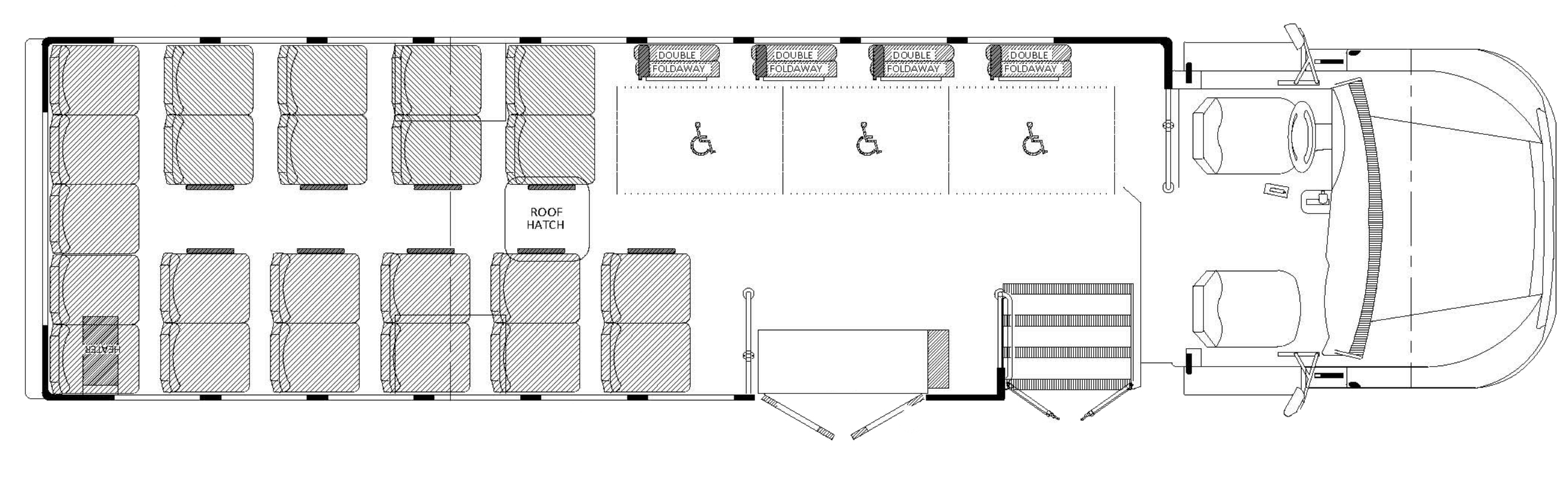

24 passengers + 3 wheelchairs

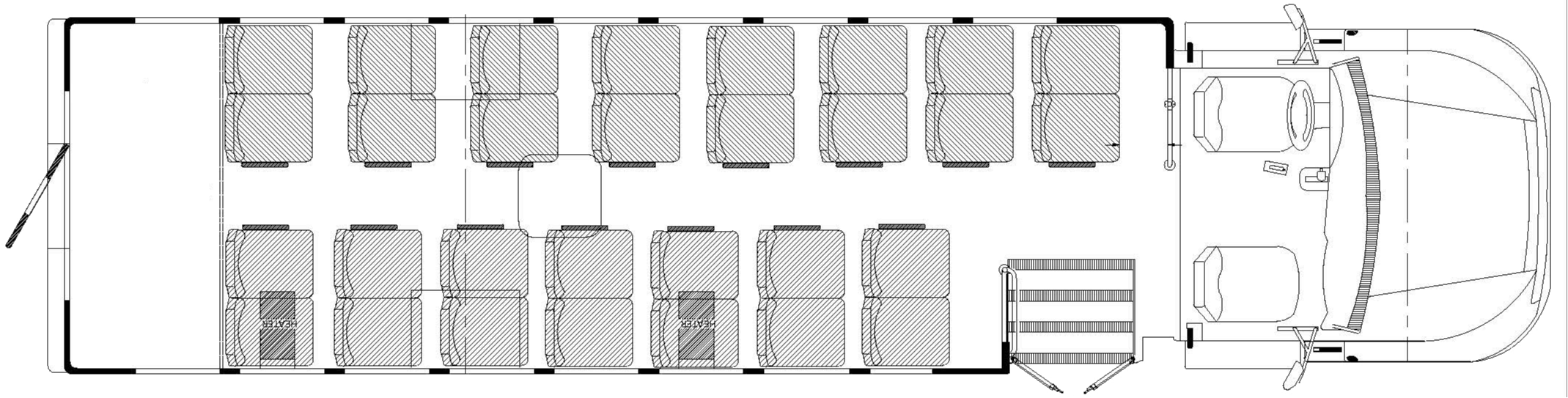

31 passengers + rear luggage

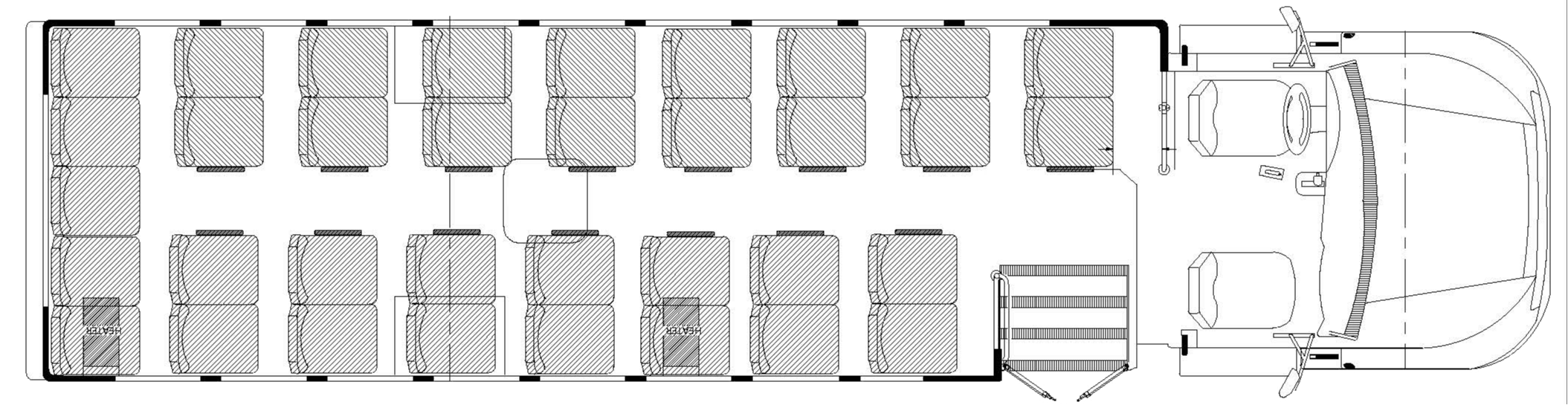

36 passengers
