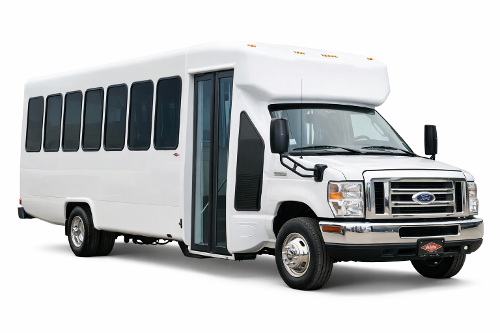

Diamond 2800

The VIP 2800 has a ½” more knee and hip room than comparable
models. While comfort is one thing, viewing the scenery is just as important for tour operators. That’s why each seat location has its own window. For speaking tours, VIP models provide a smooth, quiet ride. For example, Diamond sidewalls don’t creak because of being glued, taped, or filled with styrofoam. Diamond also installs thick rubber pads between the “I-Beams” and floor to help cushion the ride while reducing road noise.

Overview:

Up to 29 Passengers
Ford E-350 / E-450 Chassis
5-Year body warranty

View Inventory Download Brochure

Chassis Features

7.3L V8 E.F.I. Gasoline Engine
225 Amp Alternator (Gas)
Electronic 6-speed Automatic Transmission
Chrome Front Bumper
Headlights - Halogen Aero Sealed Beam
OEM White Wheels
Solar Tinted Safety Glass
Oxford White Cab Exterior
Charcoal Interior
Shock Absorbers - Gas Filled
Front Axle 5,000 LB. (G.A.W.R.)
Rear Axle 9,600 Lb. (G.A.W.R.)
Power Brakes w/4 Wheel Disc and 4 Wheel ABS
40-55 Gallon Gas Tanks Available
Tilt Steering Wheel, Cruise Control
Radial Tires - LT225/75Rx16EBSW (6)
Dual Rear Wheels
Auxiliary Transmission Oil Cooler
Super Engine Cooling
Dual Electric Horns
4.56 Rear Axle Ratio (Gas Only)
Auxiliary Battery
Stabilizer Bar, Front
Front AC, Heat & Defroster
12? Mirror, Day/Night
Shoulder Harness Style Seat Belt for
Driver
Intermittent Wipers
Driver Airbag
50 State Emission
Engine Block Heater
Lug Wrench
White Wheels
AM/FM/CD Radio
Daytime Running Lights

Specifications

Max Passenger Capacity	29
Max Wheel Chairs	8
E-350 / E-450 GVWR	14,500
Wheelbase	208"
Exterior Length	27'7"

Body & Lift Equipment

24" x 36 Solid Windows
Driver's Map Light
Award-Winning Double Wall Fiberglass/Honeycomb Body Construction - FMVSS 220/221
Oxford White Gel-Coat Exterior
ABS Interior Walls, Driver?s Area & Light Bars w/ CMI Fabric Ceiling
Circuits Fuse Protected
Track Seating
32" Double-Out Electric Front Entry Door
Exterior Clearance Lights
Door Actuated Dome and StepwellLED Lights
Color Coded Wiring
Stanchions, Guardrails, LH & RH Assist Rail
Black Transit Rubber Flooring
Black Transit Ribbed Rubber Aisle
Polyethylene Water Barrier Underbelly Pan
Steel Structure (1 1/2") Floor with 3/4" Marine Grade Plywood
White Nosing on Entrance Steps
Standard Fixed Mirrors(Remote/Heated optional)
Entrance Door Exterior Light
Composite Entrance Step
Rear Egress Window (Floorplan layout may need different)
Rocker stamped Switches
Exterior LED lighting
Interior LED lighting
Built in Ant-Ride
